Kamak Makine Ürünler
Kağıt Bobin Dilimleme Makinesi
K – 505
Product Specs
- Category: Paper Bobbin Slitting
- Brand: KAMAK
- Model: K - 505
- Machine Width:
- Engine Power:
- Slitting Speed:
- Winding Diameter:
Tech Specs
The technical specifications table is below. Please contact us for more detailed information.
| Machine Width | 1200 mm | 1400 mm | 1600 mm | 1800 mm |
|---|---|---|---|---|
| Engine Power | 7,5 KW | 7,5 KW | 10 KW | 10 KW |
| Number of Blades | 12 Pcs | 14 Pcs | 16 Pcs | 18 Pcs |
| Slitting Speed | 350 Meter/Hour | 350 Meter/Hour | 350 Meter/Hour | 350 Meter/Hour |
| Winding Diameter | 1400 mm | 1400 mm | 1400 mm | 1400 mm |
| Paper W. Range | 40-600 gr | 40-600 gr | 40-600 gr | 40-600 gr |
| Min. Slicing Width | 40 mm | 40 mm | 40 mm | 40 mm |
| Main Bobbin Size | 1400 mm | 1400 mm | 1400 mm | 1400 mm |
| Bobbin Loading Sys | Hydraulic System (6 Axis) | Hydraulic System (6 Axis) | Hydraulic System (6 Axis) | Hydraulic System (6 Axis) |
| Speed Control | Yes | Yes | Yes | Yes |
| Brake | Tension Control | Tension Control | Tension Control | Tension Control |
| Air Pressure | 6 Bar | 6 Bar | 6 Bar | 6 Bar |
| Winding Shafts | Pneumatic shaft Diameter:76 mm | Pneumatic shaft Diameter:76 mm | Pneumatic shaft Diameter:76 mm | Pneumatic shaft Diameter:76 mm |
| Capacity | 8 Tons/Day | 10 Tons/Day | 12 Tons/Day | 14 Tons/Day |

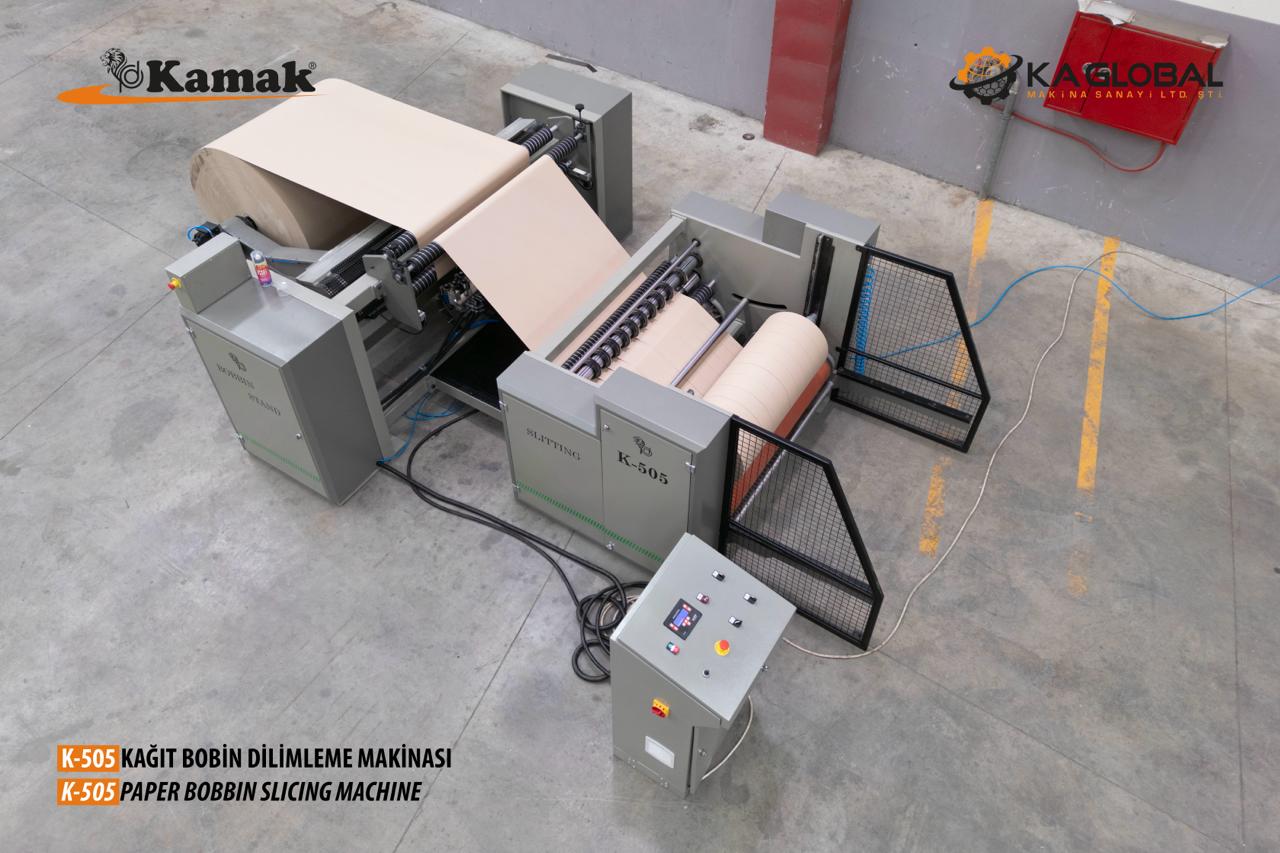

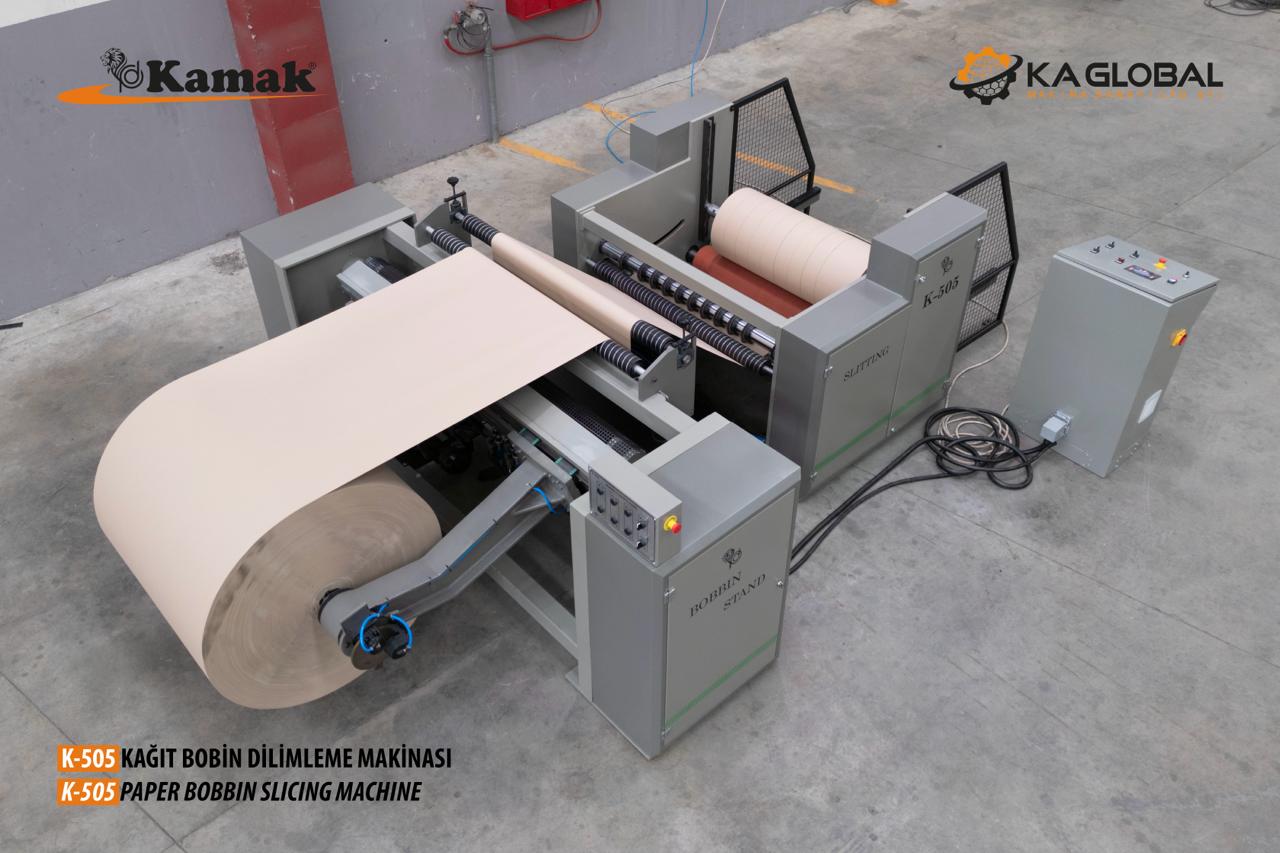

Product Images
